Product Details

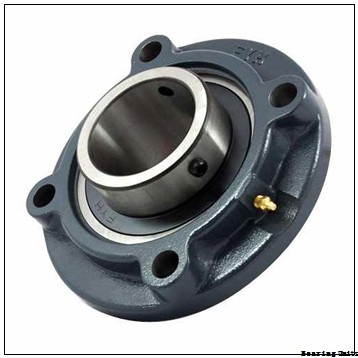

FYH UCTX10E bearing units

Brand Name FYH
Model Number UCTX10E
Min.Order Quantity 1 pcs
Price Negotiable

Product Features

FYH UCTX10E bearing Size Chart (mm/inches)

Engineering GroupMounted Bearing
Bearing Number22213
Shaft Size  65 mm
Shaft Size TypeMetric
Full Timken Part NumberQAFL13A065SB
Locking StyleSingle Concentric
Weight17.0 lb
Housing StyleFour-Bolt Square Flange
UPC Code0883450039901
Dimension BC6.75 in
Dimension C4 in
Dimension D5.750 in
Dimension E4.77 in
Dimension F6.19 in
Dimension H1.00 in
Dimension J (Bolt Size)0.625 in
Dimension KA1.24 in
Dimension L Exp3.59 in
Dimension L Fix3.51 in
Dimension M2.15 in
Dimension N2.860 in
Dimension RA0.12 in
Dimension SA3.39 in
C0 - Static Load48600 lb
C - Dynamic Load (Basic)46400 lb
e - Geometry Factor0.25
Y1 - Geometry Factor2.69
Y2 - Geometry Factor4.00
Oil Lubrication - M/N Seal1800 rpm
Oil Lubrication - T Seal3200 rpm
Oil Lubrication - B/C/O Seal1500 rpm
Grease Lubrication - M/N Seal1800 rpm
Grease Lubrication - T Seal2800 rpm
Grease Lubrication - B/C/O Seal1500 rpm
Float0.083 in
Shaft Tolerance0.0015 in
Eng Internal Radial Clearance - Min0.0016
Eng Internal Radial Clearance - Max0.0026
Pre Install Clearance Min0.0016 in
Pre Install Clearance Max0.0026 in

FYH UCTX10E bearing units

FYH UCTX10E bearing units Cad Models
