Product Details

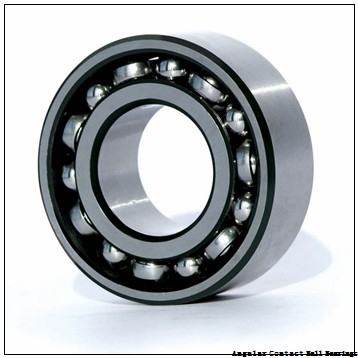

100 mm x 215 mm x 47 mm NACHI 7320CDF angular contact ball bearings

Brand Name NACHI
Model Number 7320CDF
Min.Order Quantity 1 pcs
Price Negotiable

Product Features

NACHI 7320CDF bearing Size Chart (mm/inches)

Engineering GroupMounted Bearing
Bearing Number22215
Shaft Size  2-15/16 in
Shaft Size TypeImperial
Full Timken Part NumberQMFY15J215SB
Locking StyleEccentric
Weight28 lb
Housing StyleRound Flange
UPC Code0883450073929
Dimension BC7.87 in
Dimension C4.010 in
Dimension D6.63 in
Dimension E5.56 in
Dimension F9.5 in
Dimension H0.94 in
Dimension J (Bolt Size)0.75 in
Dimension K1.25 in
Dimension L Exp3.96 in
Dimension L Fix3.88 in
Dimension M2.37 in
Dimension N3.0000 in
Dimension R0.25 in
Dimension S3.62 in
C0 - Static Load54100 lb
C - Dynamic Load (Basic)49900 lb
e - Geometry Factor0.22
Y1 - Geometry Factor3.14
Y2 - Geometry Factor4.67
Oil Lubrication - M/N Seal1600 rpm
Oil Lubrication - T Seal2900 rpm
Oil Lubrication - B/C/O Seal1300 rpm
Grease Lubrication - M/N Seal1600 rpm
Grease Lubrication - T Seal2400 rpm
Grease Lubrication - B/C/O Seal1300 rpm
Float0.083 in
Shaft Tolerance0.0020 in
Eng Internal Radial Clearance - Min0.0020
Eng Internal Radial Clearance - Max0.0031
Pre Install Clearance Min0.050 mm
Pre Install Clearance Max0.080 mm

100 mm x 215 mm x 47 mm  NACHI 7320CDF angular contact ball bearings

100 mm x 215 mm x 47 mm NACHI 7320CDF angular contact ball bearings Cad Models
